Liquid pipeline type permanent magnet iron separator
● Purpose
Used for the removal of iron from liquid slurries, effectively eliminating ferrous contaminants to prevent damage to downstream equipment and improve material purity.
● Applications
Iron removal in the lithium battery industry, including for cathode/anode materials and electrolytes. The magnetic part consists of high-strength magnetic rods. The material enters through the feed inlet, contacts and collides with the rods, which adsorb the magnetic substances.
● Performance
-
Magnetic field strength: 6,000–16,000 Gauss
-
Temperature resistance: 60–350°C
-
Housing material: 304SS, 316SS, Ti
-
Magnetic rod material: 316LSS, Ti
-
Pressure resistance: 0.6–1.6 Mpa
-
Connection type: Flange, clamp, thread, etc.
-
Top cover connection type: Bolted type or quick-open type
-
Surface treatment: Contact parts can be polished or coated with tungsten carbide; exterior can be sandblasted, brushed, or polished.
-
Seal ring material: Silicone, Fluororubber, etc.
-
Process tube specifications: φ159, φ219, φ273 mm, etc.
● Sleeve-type Liquid Pipeline Magnetic Separator
Advantage: Easy to clean.
Disadvantage: The magnetic field strength is reduced.
● Parameters

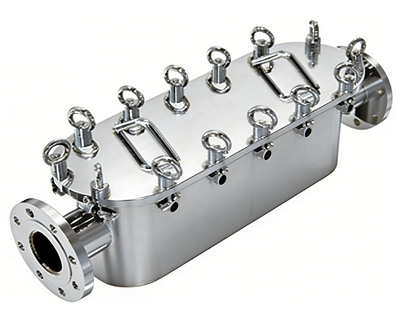

Liquid pipeline type permanent magnet iron separator -long pipeline type
● Purpose
This design was developed in response to customer requirements. It reduces the number of pipeline flange connections, shortens the overall length of the magnetic separator, and can be paired with a small lifting arm.
